Pedestrian Safety Remains a Critical Challenge
In 2024, 7,080 pedestrians were killed and more than 71,000 were injured in traffic crashes across the United States—equivalent to one pedestrian death every 74 minutes (Source: NHTSA).
Visibility is also a major factor in pedestrian safety. CDC research identifies insufficient visibility as a pedestrian crash risk factor and notes that improved roadway lighting can help create safer walking environments.
Download the SecurOS® Soffit Datasheet
Pedestrian Protection That Responds in Real Time
Detect pedestrians, follow their movement, and illuminate the crossing exactly where visibility is needed.
Detect Pedestrians
SecurOS® Soffit analyzes live video to identify pedestrians entering and moving through a monitored crosswalk.
Illuminate Their Path
The system directs white LED illumination toward detected pedestrians, dynamically following them as they cross the roadway.
Preserve Driver Visibility
Soffit directs light specifically toward pedestrians rather than flooding the entire roadway, helping improve pedestrian visibility without limiting the vision of approaching drivers.
More Than a Smart Light
Who is SecurOS® Soffit designed for?
SecurOS® Soffit is designed for cities, transportation agencies, schools, transit hubs, venues, and healthcare campuses that need to improve pedestrian visibility and create safer crosswalks in high-traffic environments.
How does SecurOS® Soffit work?

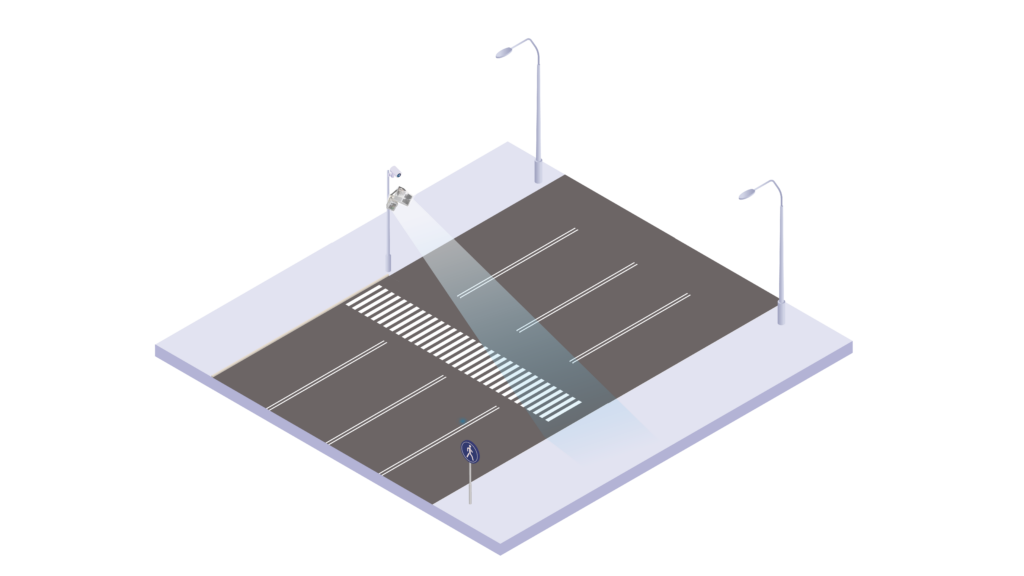

Standby Mode
When no pedestrian is detected, the LED projector provides static illumination across the pedestrian crossing at approximately 20% power, maintaining baseline visibility while reducing unnecessary full-power lighting.

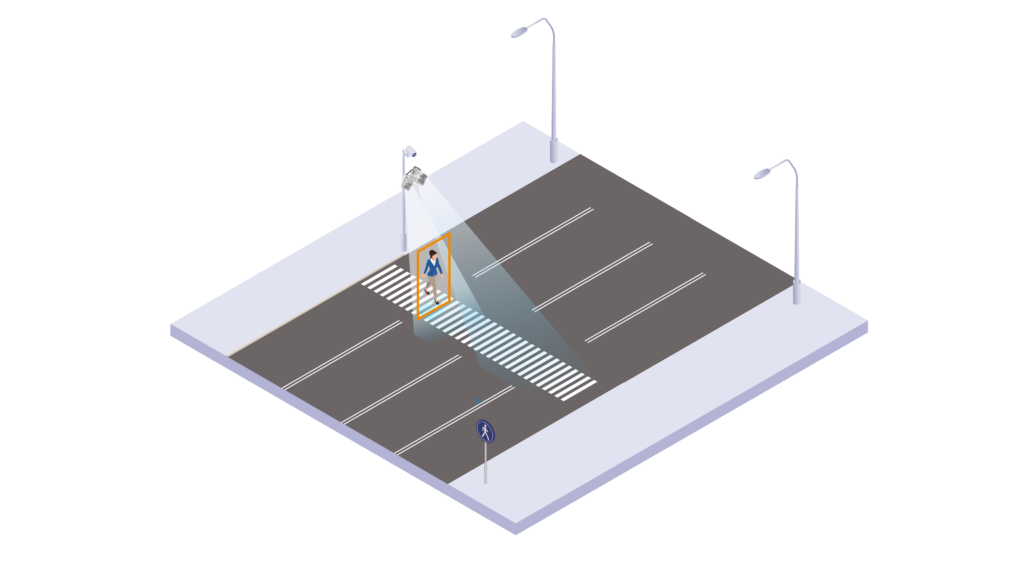

Active Mode
When SecurOS® Soffit detects a pedestrian within the control zone, dynamic illumination activates at 100% LED power and follows the person through the crosswalk, using either constant or pulsating light while the remaining modules maintain static illumination.

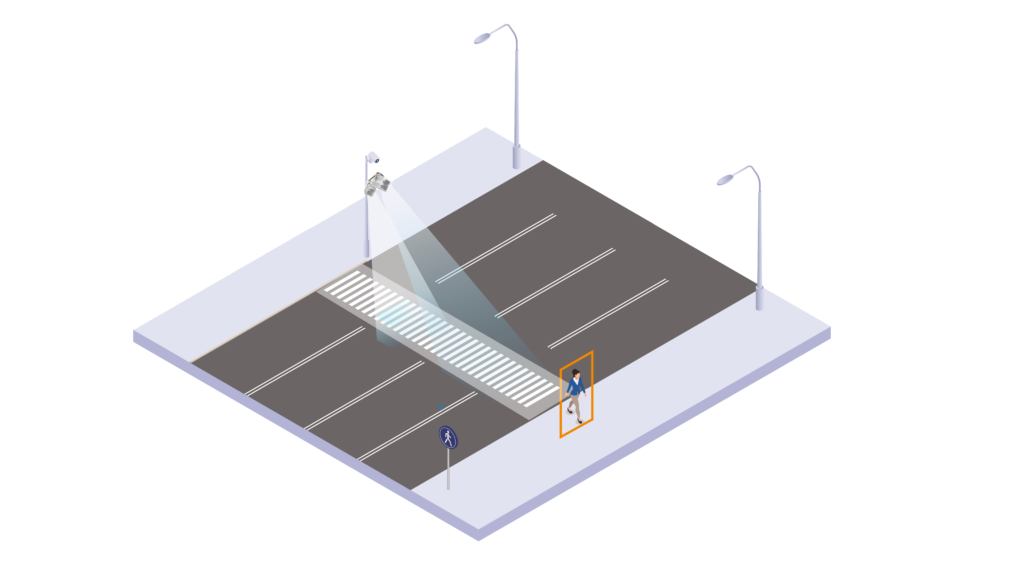

Return to Standby
Once the pedestrian has completed the crossing and leaves the monitored zone, SecurOS® Soffit automatically returns to standby mode, restoring static crosswalk illumination until the next pedestrian is detected.

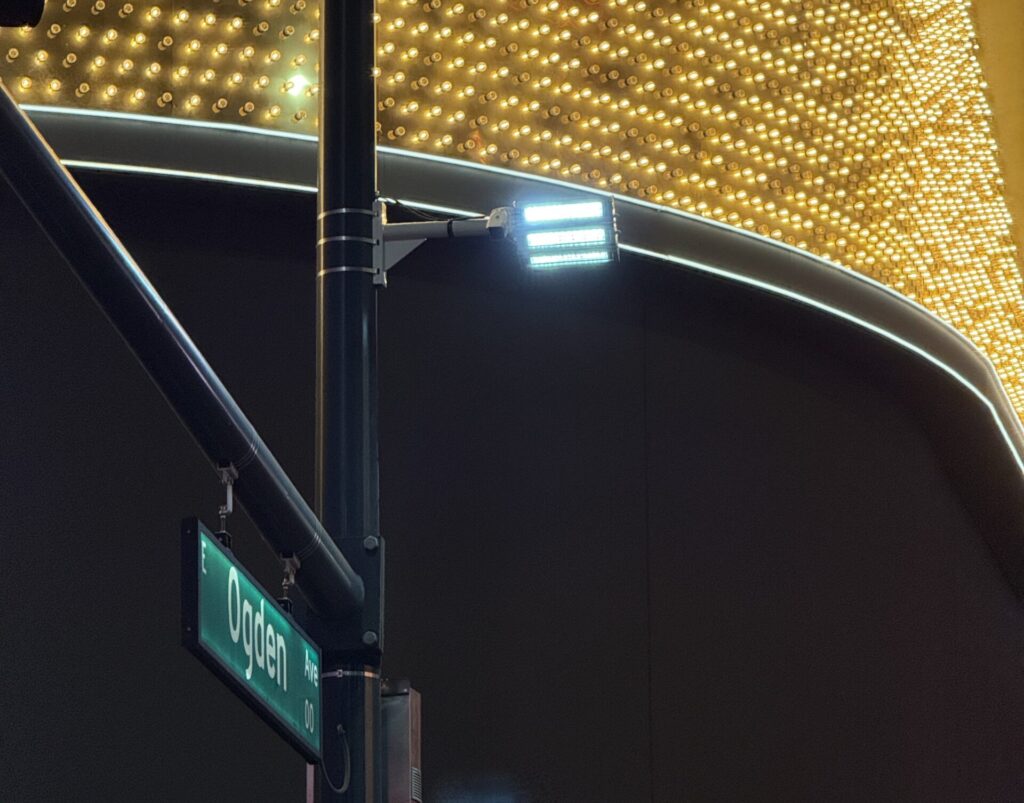

Multiple Illumination Modes
SecurOS® Soffit supports constant and pulsating dynamic illumination, allowing the lighting behavior to be configured according to operational requirements.
Connected Crosswalk Safety
Soffit integrates with SecurOS® modules, traffic control systems, and third-party platforms via HTTP/REST APIs for broader road-safety operations.
Privacy-Conscious Pedestrian Safety
Designed to protect people at crosswalks, SecurOS® Soffit is trained to detect human movement only and does not collect LPR or personal data.
Frequently Asked Questions
Learn how SecurOS® Soffit uses AI-powered pedestrian detection and dynamic LED illumination to improve crosswalk visibility, protect vulnerable road users, and support safer roadway environments.
What is SecurOS® Soffit?

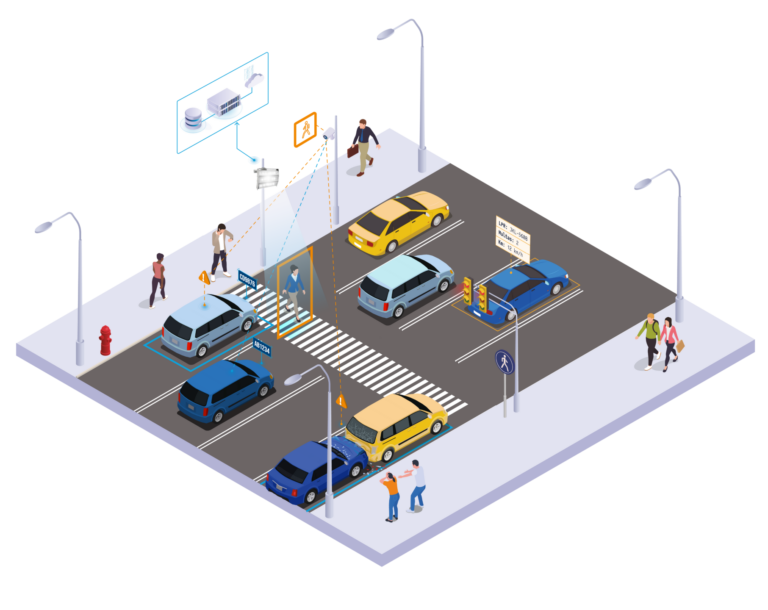

SecurOS® Soffit is an AI-powered pedestrian safety and dynamic crosswalk illumination system. It combines video analytics, an IP camera, and a directional LED lighting array to detect pedestrians and illuminate them as they move through a crosswalk.
How does SecurOS® Soffit work?
SecurOS® Soffit analyzes the camera video stream to detect and track a pedestrian’s position. The lighting array then directs illumination toward that pedestrian and follows them through the crossing before returning to standby mode.
Does SecurOS® Soffit illuminate the entire roadway?
No. The system is designed to direct light toward the pedestrian rather than flood the entire roadway, helping improve pedestrian visibility without limiting the visibility of approaching drivers.
What illumination modes does SecurOS® Soffit support?
SecurOS® Soffit supports static standby illumination and dynamic pedestrian illumination. Dynamic lighting can operate in either constant or pulsating mode.
How large of a crosswalk can SecurOS® Soffit illuminate?
The system can illuminate a pedestrian crossing up to 49.2 ft (15 meters) in length, covering up to four traffic lanes.
How bright is SecurOS® Soffit?
At least 45 lux in standby mode and at least 60 lux in active pedestrian illumination mode.
Where can SecurOS® Soffit be used?
SecurOS® Soffit is designed for pedestrian crossings in environments such as Safe Cities, school zones, crossroads, transportation hubs, venues and arenas, and healthcare campuses.
Does SecurOS® Soffit work with other SecurOS® modules?
Yes. SecurOS® Soffit can integrate with other SecurOS® modules to support detection of additional road-safety violations and broader traffic-safety applications.
Discover other SecurOS® modules
Is SecurOS® Soffit designed for outdoor operation?
Yes. The system includes outdoor hardware such as a temperature-controlled processing cabinet and an IP66-rated camera enclosure. The specified operating temperature range is −60°C to +40°C.
